Nicon Precision High Grip Machine Vice - N-104

Product image 1
Product image 2
Product image 3

Nicon Precision High Grip Machine Vice - N-104

FEATURES:

  • Hi-Grip Machine Vice Designed for Precision Milling, Grinding & Widely Used With CNC Machining Center.
  • High grade FCO 60 Ductile iron body, Grounded top and bottom.
  • Bed high matched with multiple vice orders.
  • High Alloyed Quality Resistance Steel, Case Hardened HRC 60= 2 is used in Clamping Jaws to give High Performance & No Wear.
  • Accuracy in Parallelism & Squatness With in 0.02/100mm. Interchangeable Jaws Plates.
  • Tenon & Tenon Slots Provided for Effortless Truing of Vice on Machine Table.
  • High Clamping Force can Achieve by Effortless handle movement Wich eliminates Hammering on vice handle.
  • Maximum Clamping Force 5000 kg

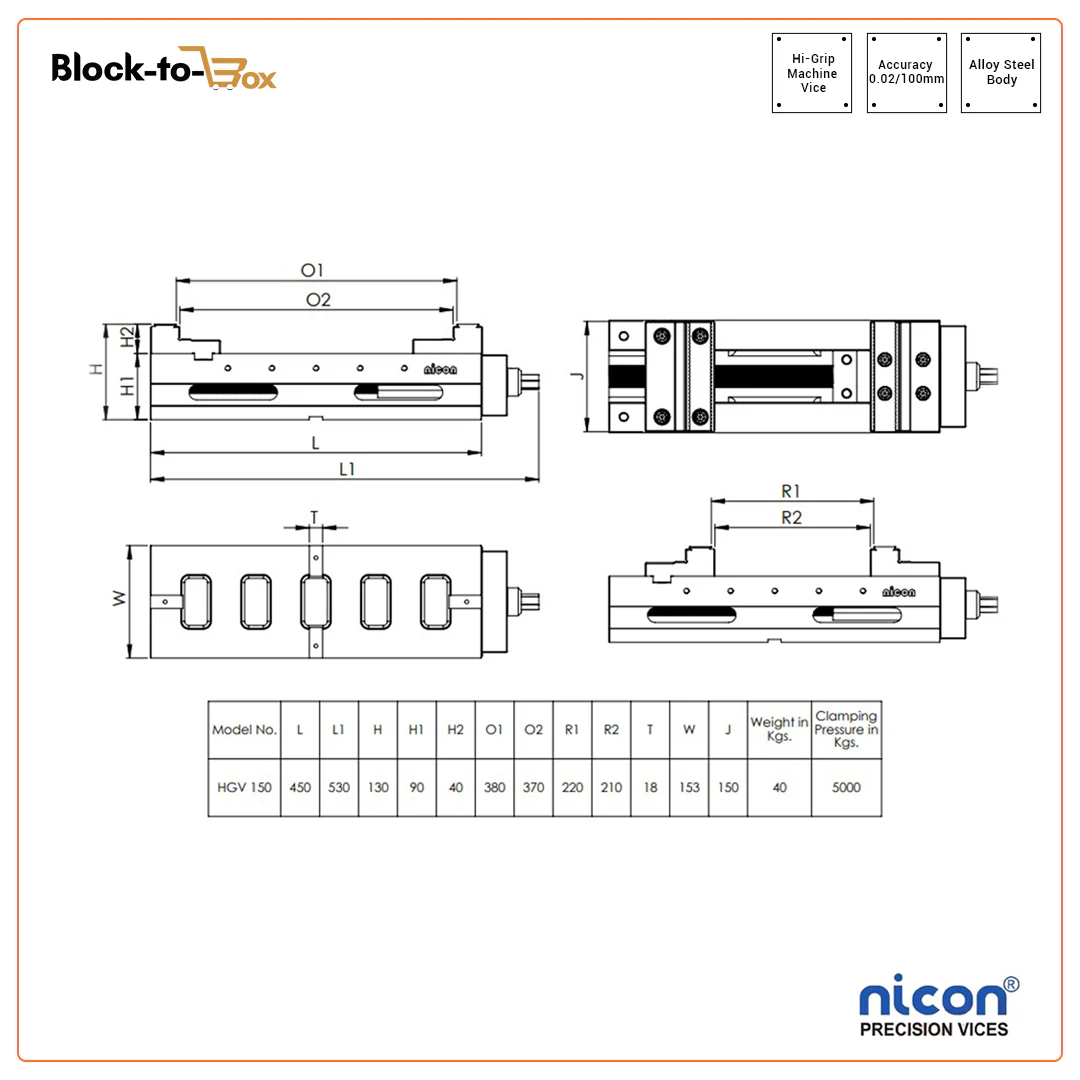

DIMENSIONS IN MM:

STANDARD ACCESSORIES:

  • 4 Side Clamps.
  • 1 BOX Wrench.
  • 2 Positioning Key Nuts, work stopper

OPTIONAL JAWS:

$197.39

Original: $657.97

-70%
Nicon Precision High Grip Machine Vice - N-104—

$657.97

$197.39

Product Information

Shipping & Returns

Description

FEATURES:

  • Hi-Grip Machine Vice Designed for Precision Milling, Grinding & Widely Used With CNC Machining Center.
  • High grade FCO 60 Ductile iron body, Grounded top and bottom.
  • Bed high matched with multiple vice orders.
  • High Alloyed Quality Resistance Steel, Case Hardened HRC 60= 2 is used in Clamping Jaws to give High Performance & No Wear.
  • Accuracy in Parallelism & Squatness With in 0.02/100mm. Interchangeable Jaws Plates.
  • Tenon & Tenon Slots Provided for Effortless Truing of Vice on Machine Table.
  • High Clamping Force can Achieve by Effortless handle movement Wich eliminates Hammering on vice handle.
  • Maximum Clamping Force 5000 kg

DIMENSIONS IN MM:

STANDARD ACCESSORIES:

  • 4 Side Clamps.
  • 1 BOX Wrench.
  • 2 Positioning Key Nuts, work stopper

OPTIONAL JAWS:
