Nicon Compact High Grip Vice - N-109

Product image 1
Product image 2
Product image 3

Nicon Compact High Grip Vice - N-109

FEATURES:

  • Compact Hi-grip machine vice designed for precision milling , grinding and widely used with CNC machining center.
  • Space saving design can  be installed in multiple on standard machine tools table.
  • Also suitable for 4th and 5th axis CNC rotary tables.
  • Large opening in very compact vice body.
  • High grade FCO 60 ductile iron body, grounded top and bottom.
  • Bed height matched with multiple vice orders.
  • High alloyed quality resistance steel, case hardened HRC 60 +or- 2 is used in clamping jaws to give high preferences and no wear.
  • Accuracy in parallelism and squareness within 0.02/110mm.
  • Interchangeable jaws plates.
  • Tenon and tenon slots provided for effortless truing of vise on machine table.
  • Hammering on vice handle.
  • maximum clamping force 4000kg.

STANDARD ACCESSORIES:

  • 1 Adjustable handle
  • 1 pair of positioning key nut
  • 1 Work stopper

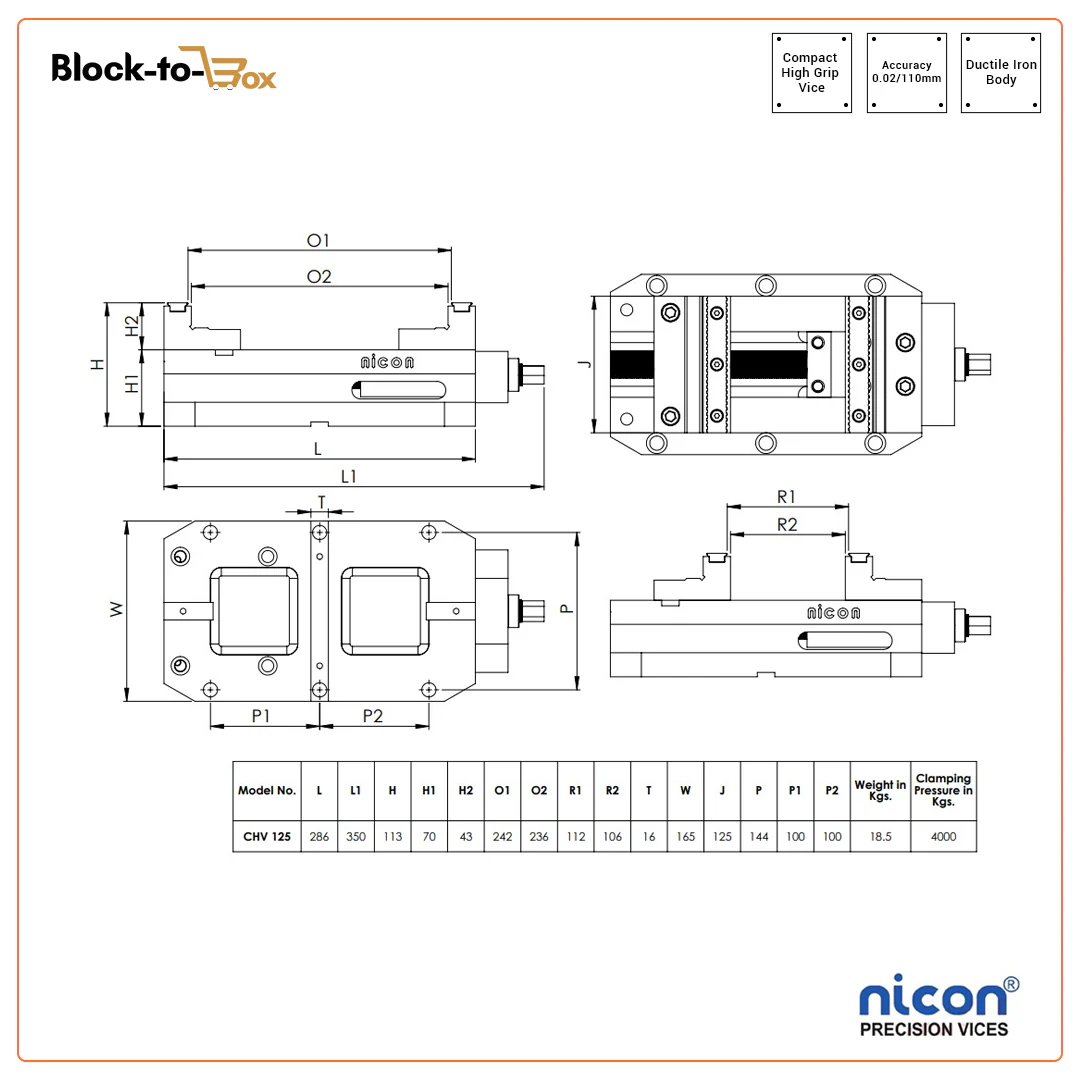

DIMENSIONS IN MM:

    $136.49

    Original: $454.96

    -70%
    Nicon Compact High Grip Vice - N-109—

    $454.96

    $136.49

    Product Information

    Shipping & Returns

    Description

    FEATURES:

    • Compact Hi-grip machine vice designed for precision milling , grinding and widely used with CNC machining center.
    • Space saving design can  be installed in multiple on standard machine tools table.
    • Also suitable for 4th and 5th axis CNC rotary tables.
    • Large opening in very compact vice body.
    • High grade FCO 60 ductile iron body, grounded top and bottom.
    • Bed height matched with multiple vice orders.
    • High alloyed quality resistance steel, case hardened HRC 60 +or- 2 is used in clamping jaws to give high preferences and no wear.
    • Accuracy in parallelism and squareness within 0.02/110mm.
    • Interchangeable jaws plates.
    • Tenon and tenon slots provided for effortless truing of vise on machine table.
    • Hammering on vice handle.
    • maximum clamping force 4000kg.

    STANDARD ACCESSORIES:

    • 1 Adjustable handle
    • 1 pair of positioning key nut
    • 1 Work stopper

    DIMENSIONS IN MM:
