Nicon precision Modular Precision Vice With Parallel jaws - N-108

FEATURES:

• This Vice designed for precision milling, grinding and widely used with CNC and standard milling machines.

• Both moving and fixed blocks are precision ground with paralelism accuracy 0.01mm and thus a precise and safely clamping
• All components of vice are interchangeable with perfect alignment to provide different work to hold solutions.

• The space-saving design and solid construction allow a maximum blocking ratio to total overall dimension of the vice.
• Four extra tapped hole in moving and fixed rear blocks in front and top for optional jaws and fixtures.
• High alloyed quality resistance steel, case hardened HRC 60±2 is used in all body and accessories of vice to give maximum rigidity, High performance & no wear

STANDARD ACCESORIES:

• 1 Work stopper,
• 1 pair of standard 16mm positioning key nut,
• 4 Clamps
• T Allen key,
• 1 box Wrench

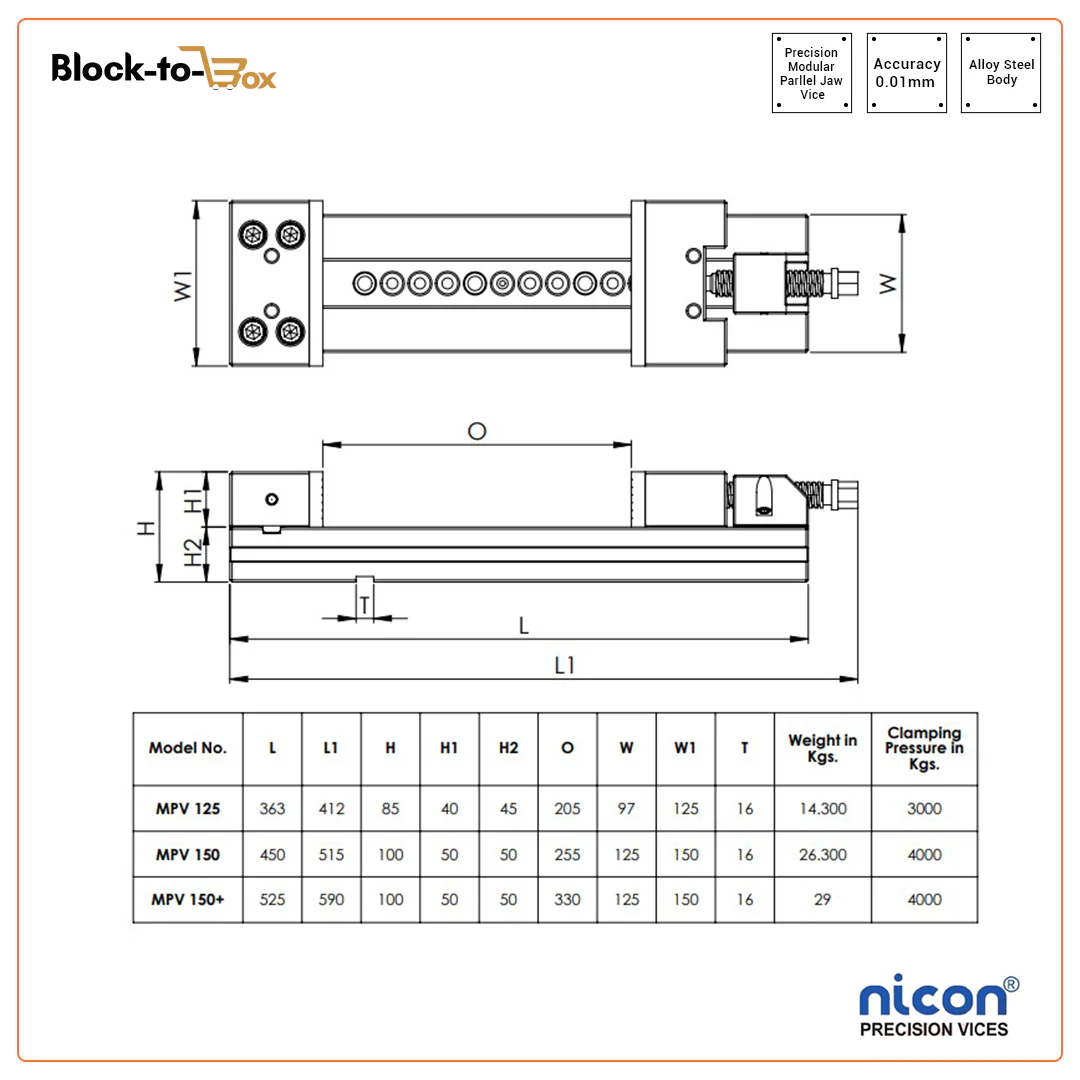

DIMENSIONS IN MM

OPTIONAL JAWS
